single loop panel ,double loop panel

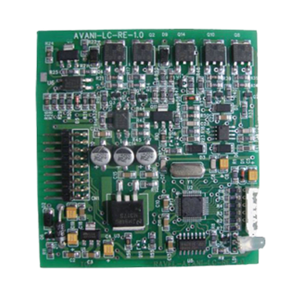

A Loop Card for Analogue Addressable Fire Alarm Control Panel can connect upto 254 devices in a single loop card. These loop card can plugged in to slot provided in the motherboard of Main panel (AVANI). RE-LC Loop Card is compatible with Addressable Detectors, Manual Call Points, Modules etc., The status of the loop shown by dual colour LED.

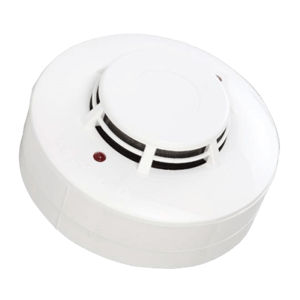

Addressable photoelectric smoke detector is designed to work with Avani Panel. These detectors are low profile and have dual LED’s, polarity free and 360° visual indication. The LED’s are blinking in normal operating condition whereas the steady state indicates fire status. It has an unique chamber designed to sense smoke produced by wide range of sources of combustion with insect free. The detectors sensitivity can be programmed through fire alarm control panel. It has a unique drift compensation where the detector adjusts its normal reference based on environment conditions.

Addressable heat detector(s) are designed to work with Addressable Fire Alarm Control Panel. These detectors are low profile, polarity free and have dual LED’s for 360° visual indication. The LED’s are blinking in normal operating condition whereas the LED’s in steady state indicate alarm status. Addressable heat detector is a fixed cum rate of rise heat detector using a thermistor. These detectors will raise an alarm when the detector reaches 59°C (Fixed) or when the change in temperature exceeds the rate of rise of 11°C / min.

Addressable multi sensor detector(s) are designed to work with Addressable panel. These detectors are low profile, polarity free and have dual LED’s for 360° visual indication. The LED’s are blinking in normal operating condition whereas the LED’s in steady state indicate fire status. The fixed cum rate of rise heat detector works using a thermistor. These detectors will raise an alarm when the detector reaches 59°C (Fixed) or when the change in temperature exceeds the rate of rise @ 11°C / min. It has an unique chamber designed to sense smoke produced by wide range of sources of combustion with insect free. The detectors sensitivity can be programmed via FACP. It has a unique drift compensation feature wherein the detector adjusts its normal reference based on environment conditions.

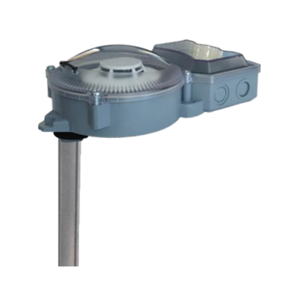

This addressable smoke detector can be installed on any side of the duct. The detector RE-428DU-S contains an intelligent controlling circuit. The circuit adjusts the sensitivity to give an optimal function throughout the entire life of the detector. Advanced Venturi tube technology with single tube detector. This duct detector housed with the flow optimization and three different length level pipes available.

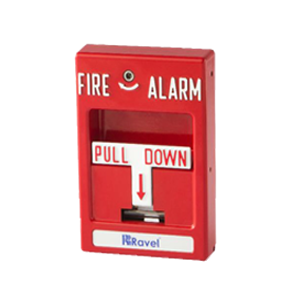

Manual Pull Station is made up of a high quality non-toxic die-cast material. Low profile design and smooth edges offer an attractive yet functional design. All components are pre-painted or have plated surfaces to inhibit corrosion. Electrically the manual pull station is unbeatable with 10 Amp snap action switch offered in all possible contact arrangements (including gold contacts). The manual pull station can be used with or without a break glass rod, with replacement requiring no special tools.

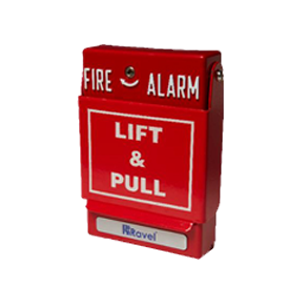

Manual Pull Station is made up of a high quality non-toxic die-cast material. Low profile design and smooth edges offer an attractive yet functional design. All components are pre-painted or have plated surfaces to inhibit corrosion. Electrically the manual pull station is unbeatable with 10 Amp snap action switch offered in all possible contact arrangements (including gold contacts). The manual pull station can be used with or without a break glass rod, with replacement requiring no special tools.

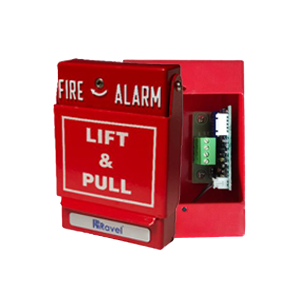

Manual pull station back box is compatible with manual pull station single / dual action. It has an in-built module to integrate the manual pull station with addressable fire alarm control panel. Blinking LED for normal condition and study LED for manual pull station activated condition. DIP switches are provided for addressing the devices.

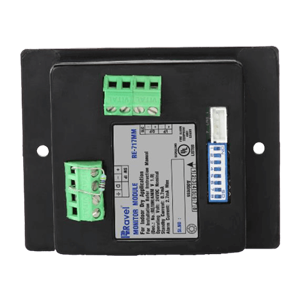

Addressable Monitor Module is an input module facilitates third party devices like security contacts, water flow switches, manual pull station, etc., with fire alarm control panel. The RED blinking LED indicates normal operating conditions and the steady state LED for activated conditions. DIP switches are provided for addressing of the module. The Monitor circuit is supervised for faulty condition.

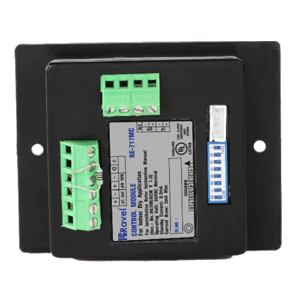

Control Module is the remote switching device to control 24V operating devices like Bells, Sounders, Strobes, etc. The required supply is drawn from a 24V power supply unit. The RED blinking LED indicates normal operating conditions and the steady state LED for activated conditions. DIP switches are provided for addressing of the module. The output and auxiliary input voltage is supervised for faulty condition.

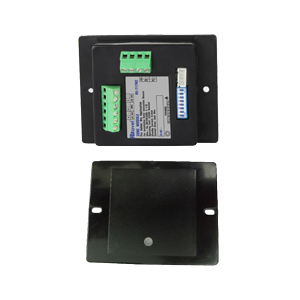

Zone Interface module permits the addressable FACP to interface and monitor 2-wire / 4-wire conventional smoke detectors and manual call point. The Zone module is addressed by using the DIP switch to communicate with addressable FACP. It transmits the status (normal, open, short or alarm) of one zone of 2-wire / 4- wire detectors to the FACP. Zone module supervises the zone of detectors and the connection of the external power supply respectively.

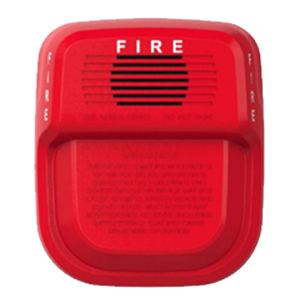

The sounder is designed to reliable safety solution with UL certification and dual tone auditable settings. For Continuous and temporal 3tones available .It can delivers the sounder output range between 75db to 85db.

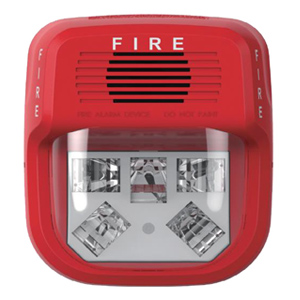

Conventional Sounder cum strobe is efficient visual and audible dual tone generating device to meet the standards of NFPA72 (2016 edition).Two Audible tone settings continuous/temporal 3 of dB level range between 75dB to 85dB. Four types of visual candela setting output available. Strobe light consists of Hybrid LED. It can be flush / ceiling mounted with / without a back box.

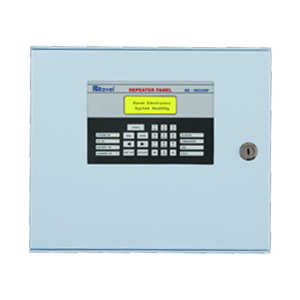

A microprocessor based Fire alarm repeater panel and which is compatible to RE-900 series Fire Alarm Control Panels. It communicates with RE-900 series fire alarm control panel through RS 485 and shows the status of the fire alarm control panel connected with it or fire alarm control panel ’s in a network.

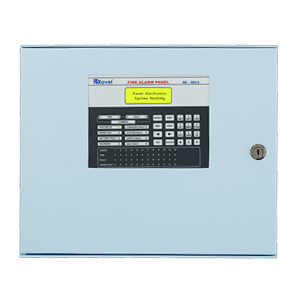

This is an UL Listed Microprocessor based conventional Fire Alarm Control Panel which has 8 Initiating Device Circuits. These control panels are designed to be used in small and medium sized commercial complexes, buildings, hotels, schools, and industrial establishments. They are compatible with conventional detectors, manual pull stations and normally open dry contact devices.

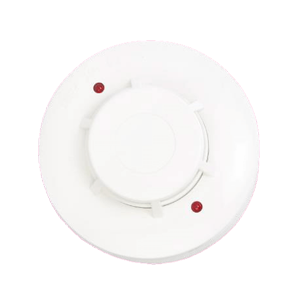

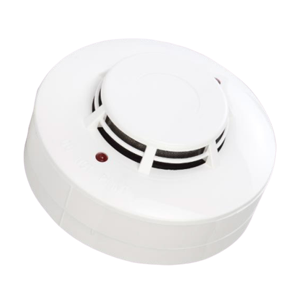

RE-316 S2L The conventional smoke detectors are designed to work with all conventional Panels. These detectors are low profile and have dual LED’s for 360° visual indication. The blinking LED’s indicate normal operating conditions whereas the steady state to indicate fire status. It has an unique protocol chamber designed to sense smoke produced by wide range of sources of combustion. It has a unique drift compensation feature wherein the detector adjusts its normal reference based on environment conditions.

The Conventional Heat detectors are designed to work with all conventional Panels. These detectors are low profile, dual LED’s, polarity free and 360° visual indication. The blinking LED’s indicate normal operating conditions whereas the steady state to indicate fire status. RE-316H-2L is a fixed cum Rate Of Rise heat detector using a thermistor. These detectors will raise an alarm when the detector reaches 59° C(Fixed) or when the change in temperature exceeds the rate of rise by 11°C / min.

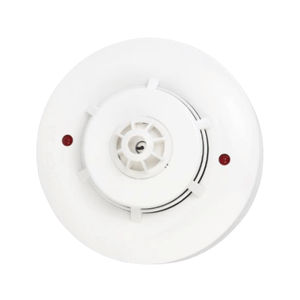

The conventional Multisensor detectors are designed to work with all conventional panels. These detectors are low profile, dual LED’s, polarity free and 360° visual indication. The blinking LED’s indicate normal operating conditions whereas the LED’s in steady state to indicate fire status. RE-316SH-2L is a fixed cum Rate Of Rise heat detector works using a thermistor. These detectors will raise an alarm when the detector reaches 59°C(Fixed) or when the change in temperature exceeds the rate of rise by 11°C / min. It has an unique chamber designed to sense smoke produced by wide range of sources of combustion with insect free.

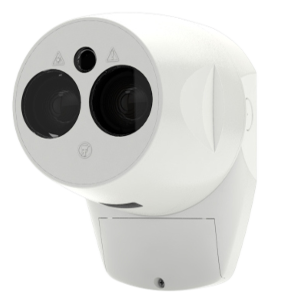

With no specialist tools or knowledge needed for installation and operation, the Eazy Beam is a standalone beam detector that prioritizes ease of installation. Using the Eazy Beam, it couldn’t be easier to bring the benefits of beam detection to your application: Auto-Aligns – using the integrated user interface – just steer the laser onto the Reflector, then at the flick of a switch, it aligns itself. 8 times faster than previous detectors One person installation – everything can be done by one person One standalone product – no specialist tools required; minimal prior knowledge and training needed Alignment of a detector in a Minute

With no specialist tools or knowledge needed for installation and operation, the Eazy Beam is a standalone beam detector that prioritizes ease of installation. Using the Eazy Beam, it couldn’t be easier to bring the benefits of beam detection to your application: Auto-Aligns – using the integrated user interface – just steer the laser onto the Reflector, then at the flick of a switch, it aligns itself. 8 times faster than previous detectors One person installation – everything can be done by one person One standalone product – no specialist tools required; minimal prior knowledge and training needed Alignment of a detector in a Minute

Optical Beam detector working range 50 meter and 100 meter, Beam detector is LPCB certified with inbuilt laser light for easy pointing the prism location, easy to align, sensitivity threshold setting changeable along with remote indicator output option. Maintenance free, effective sensing beam detectors.

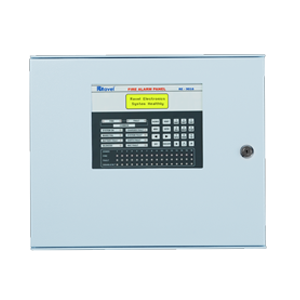

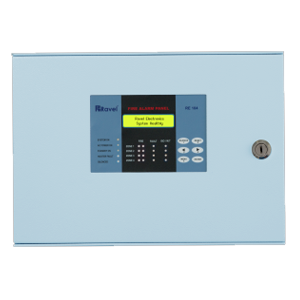

The conventional panel is a right blend of affordable design and quality with latest technology for fire alarm control panels. This microprocessor based conventional Fire Alarm Control panels designed to be used in for small size commercial buildings and small scale industries. 4 IDC’s control panel is an user friendly with LCD display and LED indications. Lock and key access is provided for authentication and also with optional zone wise Sounder / Contact respectively.

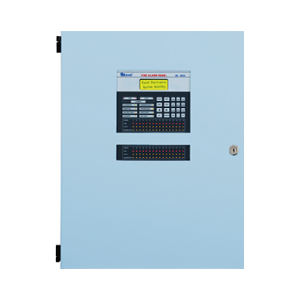

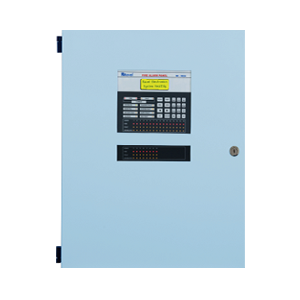

A Microprocessor based conventional Fire Alarm Control Panel are designed to be used for medium & Large establishments like Schools, hospitals, hotels, banks, residential / commercial building, and small scale industries. The system is user friendly with includes all standard to ensure ease for use and high reliability. This panel can accommodate a range of 12 IDC’s upto 128 IDC’s. User friendly systems which involves a touch keypad to program the panel. This can be used as a standalone or peer to peer network.

A Microprocessor based conventional Fire Alarm Control Panel are designed to be used for medium & Large establishments like Schools, hospitals, hotels, banks, residential / commercial building, and small scale industries. The system is user friendly with includes all standard to ensure ease for use and high reliability. This panel can accommodate a range of 12 IDC’s upto 128 IDC’s. User friendly systems which involves a touch keypad to program the panel. This can be used as a standalone or peer to peer network.

A Microprocessor based conventional Fire Alarm Control Panel are designed to be used for medium & Large establishments like Schools, hospitals, hotels, banks, residential / commercial building, and small scale industries. The system is user friendly with includes all standard to ensure ease for use and high reliability. This panel can accommodate a range of 12 IDC’s upto 128 IDC’s. User friendly systems which involves a touch keypad to program the panel. This can be used as a standalone or peer to peer network.

A Microprocessor based conventional Fire Alarm Control Panel are designed to be used for medium & Large establishments like Schools, hospitals, hotels, banks, residential / commercial building, and small scale industries. The system is user friendly with includes all standard to ensure ease for use and high reliability. This panel can accommodate a range of 12 IDC’s upto 128 IDC’s. User friendly systems which involves a touch keypad to program the panel. This can be used as a standalone or peer to peer network.

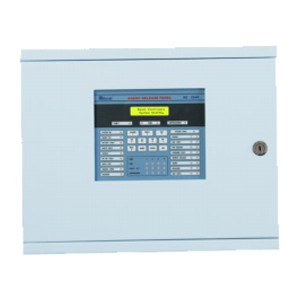

Agent Release Panel fully complies with UL-864 and NFPA-72. While implementing the latest in microprocessor technology for conventional panels ease to operate along with clear visible indications come at an advantage for the end user. These panel are a feature packed control unit performing dual function of detection and controlled release of gaseous agent. This panels have various correlation options like four zones for one agent release circuit or two detection circuit for one agent release circuit or another two detection for another agent release circuit The panel have all the safety features to prevent accidental release, easy to install, commission with user friendly programmable option, this panel is ideal choice to protect the premises.

working both ac and dc

230v ac
